RGB music controller
Category: IR controller  Publish Time: 2014-05-27 13:48

RGB music controller
Music controller is a type of universal high performance power controller, it adopts the most advanced PWM (pulse-width modulation) control technology. Can be controlled all kinds of constant voltage full-color LED lighting products.

Main features:

  • Infrared wireless remote control
  • Voice receiving sensitivity is adjustable
  • 3 set of output can realize more convenient for wiring
  • Adopt the self-locking socket
  • 2 kinds of acoustic change mode optional
  • Wide input voltage high power output
  • 16 kinds of static color optional
  • Speed and brightness are adjustable

Technical Parameters:
item value unit
input voltage 12-24 VDC
Max output current 9(3 A /channel) A
Max power output 108 W
music working condition >60 dB
Working Temperature -20~+60 °C
Output gray level RGB256 lever each level
controller size L155×W75×H30 mm
Remote size L85×W52×H7 mm
Remote distance  5~10 Meter
Estimated lifespan 30000 hours



External dimension:



Controller size

Remote control size



Connection description:



 Power input interface:

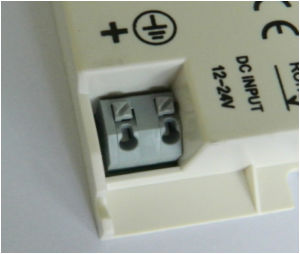

(adopt the 2 hole plastic gray connection seat, with card holder functions )



Load output interface:





(three parallel output, 4 hole plastic gray connection seat, with card holder function)



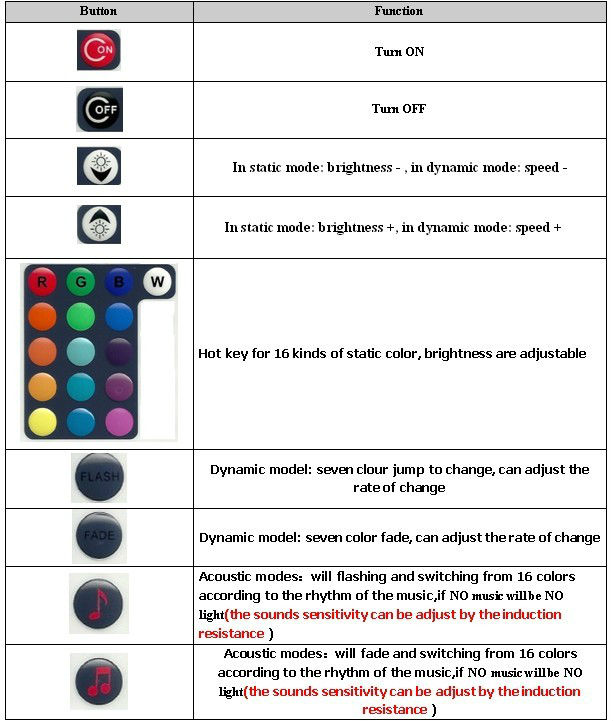

Direction for use:





Cautions:

1,This products Input voltage is DC12-24V,other input voltage are not allowed.

2,Lead wire should be connected correctly,according to the wire color and the connecting diagram offers.

3,Overload are prohibited.



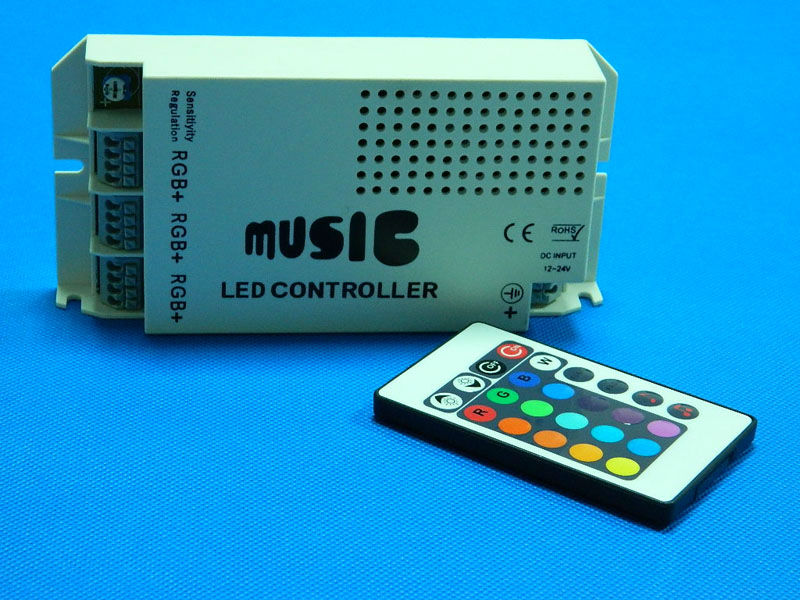

 More Picture :


Typical Applications:
